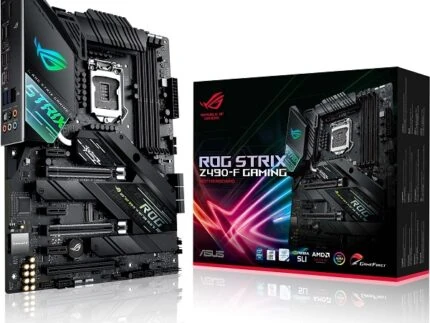

ASUS Z490-F ROG STRIX GAMING

Category: Non classé

د.ج 49.900,00

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1200

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Type-C 3 x USB 3.1 Type-A 2 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort
HDMI Port	1 x HDMI
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Out

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.1 header 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU_OPT fan header 2 x Chassis fan headers 1 x AIO_PUMP header 1 x W_PUMP+ header 1 x M.2_FAN header 1 x VRM_HS_FAN header
Thunderbolt Port(s)	1 x Thunderbolt header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 4-pin EPS
Other Connectors	2 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, E Key (for Wi-Fi Module) 2 x Addressable RGB headers 2 x Aura RGB Strip headers 1 x Thermal Sensor header

Memory

Memory Bus Speed	4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/213 MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Chipset Manufacturer	Intel
Northbridge	Z490
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

2 x PCI Express 3.0 x16 (@ x16, x8/x8)
1 x PCI Express 3.0 x16 (@ x4)
3 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Warranty

1 Year Years

Sound

Integrated Sound

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

Network

Integrated Network	Intel I225-V
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Special Features	AURA Sync ASUS EZ DIY ASUS Q-Design DIY Friendly Design
Jumpers	1 x Clear CMOS 1 x CPU_OV
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology

Physical

Form Factor	ATX Motherboard
In The Box	ROG STRIX Z490-F GAMING Motherboard User’s manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 M.2 Key E screw package(s) 1 ROG key chain
Width	305 mm
Length	244 mm

Key Features

Firewire	No
Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	305 mm
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	Both
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Chipset	Intel Z490
Thunderbolt	No
Motherboard Model	ASUS ROG Strix Z490-F Gaming
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	4600 MT/s
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes

Item Details

Manufacturer	ASUS
Manufacturer Code	90MB12Q0- M0EAY0
EAN	4718017674300
Condition	B Grade
